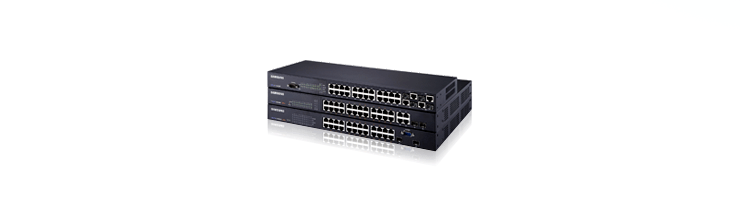

Ubigate iES4000 시리즈
삼성 Ubigate iES4000 시리즈는 워크그룹 이더넷 스위치로 IPT환경에서 TCO를 줄여주면서사용 편리성 및 최고의 안정성을 제공합니다.
|
| |
 |
최고의 Gigabit Port Density
|
|
| 1RU Chassis에서 최대 4개의 10/100/1000 Gigabit Uplink Ethernet Port 지원
|
| |
|
전 Access Port의 IEEE802.3af 표준 지원
|
|
| 모든 Access Port의 IEEE Power over Ethernet 지원 (iES4028FP, iES4026GP)
|
| |
|
IP Clustering지원
|
|
| 최대 32 스위치까지 하나의 IP주소로 관리 가능한 IP Clustering 지원 |
| |
|
GVRP, Voice VLAN 지원
|
|
| Tag나 Port기반 VLAN지원 및 자동 GVRP LAN 등록 지원, 최적의 IPT 환경을 위한 Voice VLAN 지원 |
| |
|
IGMP Snooping지원
|
|
| Multicast 환경에서 등록멤버에게만 IP Multicast 전송트래픽을 허용함으로 대역폭 절감 효과 및 LAN성능 향상 |
| |
|
LACP지원 MultiLink Trunking
|
|
| 10/100, Gigabit Port를 Trunking하여 높은 대역폭 기반으로 연결 가능 |
| |
|
향상된 보안 기능
|
|
| L2 ~ L4기반 ACL, Radius, TACACS+, SSH, SSL, 802.1X기반 Port Security, DHCP Snooping 지원
|
|
|
|
Physical Features
|
|
| Model |
iES4028FP |
iES4028F |
iES4024GP |
| Image |
 |
 |
 |
| Ports |
- 24 10/100 BASE-T ports with PoE
- 2 10/100/1000 BASE-T ports
- 2 Gigabit Combo ports
- 1 Console port |
- 24 10/100 BASE-T ports
- 4 Gigabit Combo ports
- 1 Console port |
- 22 10/100/1000 BASE-T ports with PoE
- 2 Gigabit Combo ports
- 1 Console port |
| Switching Capacities |
12.8 Gbps |
12.8 Gbps |
48 Gbps |
| Forwarding Rate |
9.5 Mpps |
9.5 Mpps |
35.7 Mpps |
| Weight |
- 4.13 kg
- 9.11 lbs |
- 3 kg
- 6.7 lbs |
- 4.33 kg
- 9.53 lbs |
| Dimension |
- 4.3 x 44 x 33 cm
- 1.7 x 17.3 x 12.992 inch |
- 4.3 x 44 x 17.2 cm
- 1.7 x 17.3 x 6.7 inch |
- 4.3 x 44 x 32 cm
- 1.7 x 17.3 x 12.6 inch |
| AC Input |
100 to 240V, 50-60Hz |
100 to 240V, 50-60Hz |
100 to 240V, 50-60Hz |
| Power Consumption |
225W (System 45W, PoE 225W) |
30W |
225W (System 45W, PoE 225W) |
| Power-over-Ethernet |
- Maximum output power per port : 15.4W
- Maximum output power per port : 7.5W simultaneously |
NA |
- Maximum output power per port : 15.4W
- Maximum output power per port : 7.5W simultaneously |
| Network Interface |
10/100 BASE-T ports |
| 10/100/1000 BASE-T ports |
|
| |
|
|
|
Software Features
|
|
| Feature |
Description |
| Flow Control |
- IEEE 802.3x for full duplex mode
- Back pressure flow control half duplex mode |
| Spanning Tree |
- IEEE 802.1D STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP
- Spanning Tree Fast Forwarding
- Auto Edge
- Loop Protection |
| MAC Addresses |
8K MAC address entries |
| VLAN |
- 802.1Q Tag-based VLAN
- 802.1Q Port-based VLAN
- 802.1v Protocol-based VLAN
- 256 VLANs entries out of 4K VLAN IDs
- GVRP
- Voice VLAN |
| IGMP Snooping |
- V1, V2, V3
- Querier
- Immediate Leave
- Filtering and throttling |
| Link Aggregation |
IEEE 802.3ad with LACP- 8 aggregation groups up to 8 ports |
| MVR |
Yes |
| Jumbo Frame |
10K in gigabit ports |
| QnQ |
Yes |
| Quality of Service |
- Priority queue(Scheduling : Strict priority, WRR, 4 queue per port)
- DiffServ
- COS(IEEE 802.1p, DSCP based COS)
- Rate limiting (Per Port Based) (Ingress, Engress) |
| Security |
- Storm Control(Broadcast storm, Multicast storm, DLF (Destination Lookup Failure))
- MAC Address filtering
- Username/Password authentication
- Access control list (L2/L3/L4)
- AAA(RADIUS, TACACS+)
- MAC based Authentication
- HTTPS/SSL
- SSHv1/v2
- 802.1x (Port-Based, Supplicant Support, VLAN Assignment, Guest VLAN, Co-works with Radius, TACACS+ server)
- Management Interface Access filtering(SNMP, WEB, Telnet)
- DHCP Snooping
- IP Source Guard |
| Management |
- Management method(Web-based, Telnet (4 sessions))
- Software download(TFTP, Xmodem)
- Dual Firmware Images
- Configuarion file download(TFTP)
- SNMP v1/v2c/v3
- RMON {group 1, 2, 3, 9}
- BOOTP(Client)
- DHCP(Client, Relay (Option 82))
- Port Mirroring (one-to-many)
- Event/Error Log(Local, Syslog, SMTP)
- Remote Ping
- SNTP
- NTP
- IEEE 802.1ab (LLDP)
- UPnP, Banner, Web authentication
- IP Clustering (36 members) |
|
|
|
